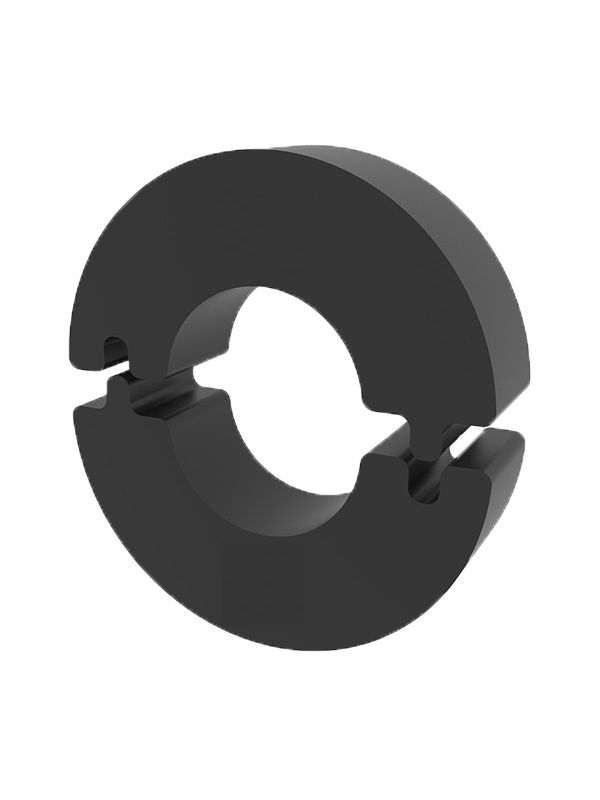

Rubber Support Insert

Downloads

Catalog
Project Approvals
Technical Data Sheet

Additional Information

Used in preventing crushing of the insulation at pipe support location of chilled water, condenser water and domestic hot/cold water installations.
Load bearing capacity : Designed to carry maximum operating pipe weight as per recommended span by Manufacturers Standardization Society (US) Standard MSS SP-69
Density : 1150 to 1200 kg/m3.
Thermal Conductivity : 0.16 w/m C (At 1190Kg/m3 density as stated by ASHRAE)
Compliance : BS 3974: Part 1 (1974)
